Austin Hughes Server Rack

Austin Hughes UltraRack NSR Series 600mm Width
Server Rack (網門伺服器機櫃)
- 標準19吋機櫃、1000公斤受重量、黑色、前後有鎖網門、後門中開、有轆、跟螺絲
Specification :
- Enhanced main frame, 1000kg static loading capacity
- 19" rails w/ unit mark, front & rear pairs
- Front perforated door w/ 3-pt handle lock ( front glass door selective )
- Rear perforated middle split door w/ 3-pt handle lock
- Side panel w/ latch, pair
- Fully vented top cover w/ cable access channel
- 75mm full height cable tray, pair
- Heavy duty castor & adjustable feet, set of 4
- Dynamic earthing kit
- M6 screw fixing, pack of 50
- Standard color: dark ( RAL-9005 )

- 機櫃符合歐盟 RoHS2 和 REACH 法規並得到 SGS 認證實驗室認可
- 設計和製造過程達到BSi ISO9001質量管理和 ISO14001 環境標準
- 受重量有保證,已通過美國認可實驗室的荷載試驗


 Server Rack
Model No
型號
 Height
(U)
高度
 Dimension
W x D x H (mm)
實際尺寸
Standard
Rack
標準機櫃
No side panels
Rack
無左右板
 Frame
Only

淨架
Detail
Drawing

詳細圖則
NSR-6042 42U 600 x 1072 x 2035 HK$6,170 HK$5,850 HK$5,200
NSR-6942 42U 600 x 972 x 2035 HK$6,040 HK$5,720 HK$5,070
NSR-6842 42U 600 x 872 x 2035 HK$5,910 HK$5,590 HK$4,940

NSR-6037 37U 600 x 1072 x 1813 HK$5,910 HK$5,590 HK$4,940
NSR-6937 37U 600 x 972 x 1813 HK$5,780 HK$5,460 HK$4,810
NSR-6837 37U 600 x 872 x 1813 HK$5,650 HK$5,330 HK$4,680

NSR-6027 27U 600 x 1072 x 1368 HK$5,390 HK$5,070 HK$4,420
NSR-6927 27U 600 x 972 x 1368 HK$5,260 HK$4,940 HK$4,290
NSR-6827 27U 600 x 872 x 1368 HK$5,130 HK$4,810 HK$4,160


NSR-6822  22U 600 x 872 x 1146 HK$4,480 - - http://www.6dhk.com/server-rack/NSR-6822.pdf
NSR-6622  22U 600 x 672 x 1146 HK$4,350 - - http://www.6dhk.com/server-rack/NSR-6622.pdf

NSR-6817   17U 600 x 872 x 923 HK$4,480 - - http://www.6dhk.com/server-rack/NSR-6817.pdf
NSR-6617   17U 600 x 672 x 923 HK$4,350 - - http://www.6dhk.com/server-rack/NSR-6617.pdf

Accessories Pack for NSR Server Rack (增值選項:兩塊層板 + 一件原裝掛櫃8 位英式插頭拖板)
 Accessories Pack for New Order* Price
 2 x Standard Fixed Shelf, 1 x tool-less mounting PDU with 8 Outlets (UK13A) HK$1,000
* 每個機櫃只限購買一套 Limited to one set per server rack

歡迎致電 2525-0650 或電郵至 enquiry@6dhk.com 查詢


Austin Hughes UltraRack NSR Series 800mm Width
Server Rack (網門伺服器寬身機櫃)
- 寬身19吋機櫃、750公斤受重量、黑色、前後有鎖網門、後門中開、有轆、跟螺絲

Specification :
- Enhanced main frame, 750kg static loading capacity
- 19" rails w/ unit mark, front & rear pairs
- Front perforated door w/ 3-pt handle lock ( front glass door selective )
- Rear perforated middle split door w/ 3-pt handle lock
- Side panel w/ latch, pair
- Fully vented top cover w/ cable access channel
- 150mm full height cable tray, pair
- Heavy duty castor & adjustable feet, set of 4
- Dynamic earthing kit
- M6 screw fixing, pack of 50
- Standard color: dark ( RAL-9005 )

Server Rack
Model No
型號
 Height
(U)
高度
 Dimension
W x D x H (mm)
實際尺寸
Standard
Rack
標準機櫃
No side panels
Rack
無左右板
 Frame
Only

淨架
Detail
Drawing

詳細圖則
NSR-8042 42U 800 x 1072 x 2035 HK$7,470 HK$7,150 HK$6,500
NSR-8942 42U 800 x 972 x 2035 HK$7,340 HK$7,020 HK$6,370 http://www.6dhk.com/server-rack/NSR-8942.pdf
NSR-8842 42U 800 x 872 x 2035 HK$7,210 HK$6,890 HK$6,240 http://www.6dhk.com/server-rack/NSR-8842.pdf
歡迎致電 2525-0650 或電郵至 enquiry@6dhk.com 查詢

- 機櫃符合歐盟 RoHS2 和 REACH 法規並得到 SGS 認證實驗室認可
- 設計和製造過程達到BSi ISO9001質量管理和 ISO14001 環境標準
- 受重量有保證,已通過美國認可實驗室的荷載試驗



Austin Hughes Server Rack Accessories (機櫃配件選項)
 Model No  Description  Price  Detail
TF-02  Top Fan Tray with 2 fans (機頂風扇 - 兩把) HK$600 http://www.6dhk.com/server-rack/TF-02.pdf
TF-04  Top Fan Tray with 4 fans (機頂風扇 - 四把) HK$970 http://www.6dhk.com/server-rack/TF-04.pdf
TF-06  Top Fan Tray with 6 fans (機頂風扇 - 六把) HK$1,270 http://www.6dhk.com/server-rack/TF-02.pdf

F-1.6  1U Rackmount Fan Tray with 6 fans (機架式風扇 - 六把)  HK$1,750 http://www.6dhk.com/server-rack/TF-02.pdf
F-1.9  1U Rackmount Fan Tray with 9 fans (機架式風扇 - 九把)  HK$2,250 http://www.6dhk.com/server-rack/TF-02.pdf

 S44  440mm deep, Fixed Shelf, 50kg Loading (普通層板) HK$270 http://www.6dhk.com/server-rack/TF-02.pdf
 S58  580mm deep, Fixed Shelf, 50kg Loading (普通層板) HK$320 http://www.6dhk.com/server-rack/TF-02.pdf
 S70  700mm deep, Fixed Shelf, 50kg Loading (普通層板) HK$350 http://www.6dhk.com/server-rack/TF-02.pdf

 HS44  400mm deep, Heavy Duty Fixed Shelf, 100kg Loading (受重層板) HK$320 http://www.6dhk.com/server-rack/HS44.pdf
 HS58  580mm deep, Heavy Duty Fixed Shelf, 100kg Loading (受重層板) HK$420 http://www.6dhk.com/server-rack/TF-02.pdf
 HS70  700mm deep, Heavy Duty Fixed Shelf, 100kg Loading (受重層板) HK$480 http://www.6dhk.com/server-rack/TF-02.pdf

 TS44  440mm deep, Sliding Shelf, 30kg Loading (滑軌層板) HK$830 http://www.6dhk.com/server-rack/TS44.pdf
 TS58  580mm deep, Sliding Shelf, 30kg Loading (滑軌層板) HK$900 http://www.6dhk.com/server-rack/TS58.pdf

 MS19  190mm deep, Cantilever Shelf, 20kg loading (前扣層板) HK$190 http://www.6dhk.com/server-rack/MS19.pdf
 MS40  400mm deep, Cantilever Shelf, 20kg loading (前扣層板) HK$270 http://www.6dhk.com/server-rack/TF-02.pdf

 RK-2e  1U Short Depth Keyboard Drawer HK$1,620  http://www.6dhk.com/server-rack/RK-2e.pdf
 TSD-2U  2U 19" Rackmount Drawer with lock, 580mm deep, 30kg loading (2U 有鎖櫃筒) HK$1,230  http://www.6dhk.com/server-rack/TSD-2U.pdf
 TSD-4U  4U 19" Rackmount Drawer with lock, 580mm deep, 30kg loading (4U 有鎖櫃筒) HK$1,750  http://www.6dhk.com/server-rack/TSD-4U.pdf

 ABP-1  1U Tool-less Air Blanking Panel, Black (1U 遮醜板) HK$100 http://www.6dhk.com/server-rack/ABP-1.pdf
 ABP-2  2U Tool-less Air Blanking Panel, Black (2U 遮醜板) HK$130 http://www.6dhk.com/server-rack/TF-02.pdf

NSR-BK  Side Baying bracket of 4 (4 x 邊櫃扣) HK$300 http://www.6dhk.com/server-rack/NSR-BK.pdf
 BK-M6  Top baying bracket x 2 (2 x 頂櫃扣) HK$200 http://www.6dhk.com/server-rack/TF-02.pdf
 M6  Screw, Cage Nut & Washer, pack of 50 (50 x 螺絲, 絲模, 介指) HK$240 -

 V8UK45-13A  Tool-less Vertical Mounting 8 UK Outlet 13A PDU angled 45 degree (直身 8 位英式插頭拖板) HK$690  http://www.6dhk.com/server-rack/V8UK45.pdf
 V8UK135-13A  Tool-less Vertical Mounting 8 UK Outlet 13A PDU angled 135 degree (直身 8 位英式插頭拖板) HK$690  http://www.6dhk.com/server-rack/V8UK135.pdf
H8UK90-13A  1.25U Horizontal Rack Mounting 8 UK Outlet 13A PDU (橫身上架式 8 位英式插頭拖板) HK$690  http://www.6dhk.com/server-rack/V8UK135.pdf

  800mm Width Rack Accessory (800 寬櫃專用配件)
 CMR-180P Cabling ring, pack of 10, for front (前置配線環) HK$750 http://www.6dhk.com/server-rack/CMR-180P.pdf
 CMR-120P Cabling ring, pack of 10, for rear (後置配線環) HK$600 http://www.6dhk.com/server-rack/CMR-120P.pdf
 FG-40U Finger Guide, 42U cabinet, set of 2 sides (指式配線間) HK$1,500 http://www.6dhk.com/server-rack/FG-40U.pdf
購買滿 $3,000包送貨,歡迎致電 2525-0650 或電郵至 enquiry@6dhk.com 查詢


Austin Hughes UltraRack BR Series - Cabinet Wall Mount Rack (掛牆式儀器櫃)
- 灰白色,前面上架,玻璃門有鎖,左右門有鎖,可拆除後門,跟螺絲。
- Grey White, Main body w/ front mounting, pair - Front glass door w/ lock - Detachable steel rear panel - Side panel w/ lock, pair - M6 screw set, pack of 20



 Cabinet Rack
Model No
型號
Height
(U)
高度
Dimension
W x D x H (mm)
實際大小
Standard
Package
標準儀器櫃
Detail
Drawing

詳細圖則
BR-6.5 6U 600 x 537 x 343 HK$1,950
BR-6.6 6U 600 x 637 x 343 HK$2,050

BR-9.5 9U 600 x 537 x 477 HK$2,050
BR-9.6 9U 600 x 637 x 477 HK$2,150

BR-12.5 12U 600 x 537 x 610 HK$2,150
BR-12.6 12U 600 x 637 x 610 HK$2,250

BR-15.5 15U 600 x 537 x 743 HK$2,250
BR-15.6 15U 600 x 637 x 743 HK$2,350

BR-17.5 17U 600 x 537 x 832 HK$2,650
BR-17.6 17U 600 x 637 x 832 HK$2,850
購買滿 $3,000包送貨,歡迎致電 2525-0650 或電郵至 enquiry@6dhk.com 查詢

Austin Hughes Cabinet Wall Mount Rack Accessories (掛牆式儀器櫃配件選項)
 Model No  Description  Price  Detail
BR-F2  2 Fans, Top Fan Kit for Wall Mount Rack (上牆式儀器櫃風扇) HK$500 http://www.6dhk.com/server-rack/TF-02.pdf
MS19  190mm deep, Cantilever Shelf, 20kg loading (前扣層板) HK$190 http://www.6dhk.com/server-rack/TF-02.pdf
MS40  400mm deep, Cantilever Shelf, 20kg loading (前扣層板) HK$270 http://www.6dhk.com/server-rack/TF-02.pdf
 MC  4 x Medium Casters for Wall Mount Rack (上牆式儀器櫃 - 四個碌) HK$600 http://www.6dhk.com/server-rack/TF-02.pdf
購買滿 $3,000包送貨,歡迎致電 2525-0650 或電郵至 enquiry@6dhk.com 查詢

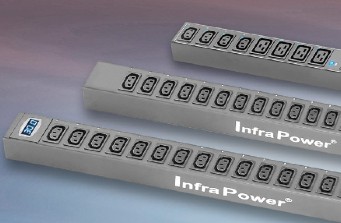

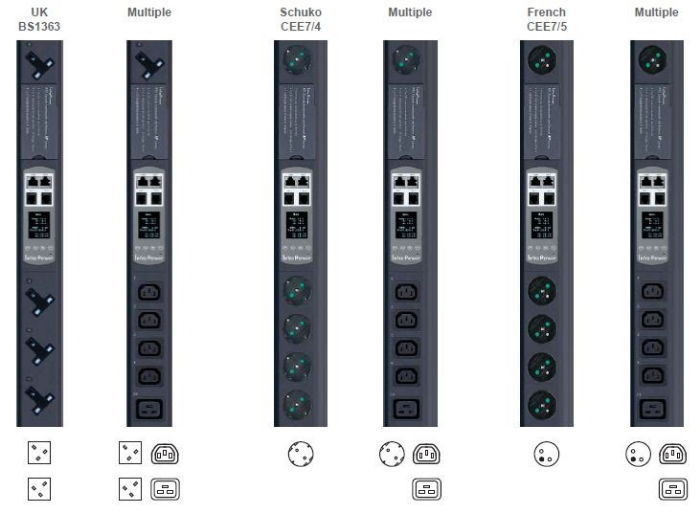

InfraPower Power Distribution Unit PDU (專業級配電)
InfraPower PDU 是Austin Hughes 為機櫃推出的專用配電裝置,電流量由10至32 Amp不等,由橫身到直身,用家可以因應自己需要選擇功能,電流量、方向、長度、電座類型和數量,極具成本效益,歡迎查詢。
