Online UPS 在線不間斷電源


綠燈香港APC特選認可授權夥伴
6D Hong Kong Limited is APC authorized Premier PARTNER

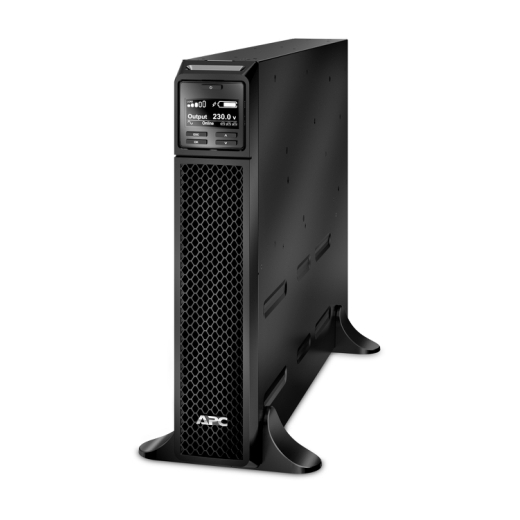

APC Smart-UPS Online SRT 2200VA
Model 型號 : SRT2200XLI / SRT2200RMXLI

Specification 規格 : APC Smart-UPS On-Line, 1980 / 2200VA, Input 230V / Output 230V, Interface Port RJ45 Serial, SmartSlot, Extended runtime model, Rack-Height 2U

Topology 制式: Double Conversion Online
Dimension 體積: 432 x 85 x 584 mm (H x W x D)
Weight 重量: 25.0 KG
Warranty 保養: 3 years repair or replace (excluding battery) and 2 years for battery
Extended Run Option 附加電池組: SRT72BP / SRT72RMBP
Replacement Battery 更換電池: APCRBC141
19" Rail Kit 機架: SRTRK4

Table: Runtime vs Loading

  700W 1000W 1300W 1600W
 SRT2200XLI 18 mins 11 mins 8 mins 6 mins
 SRT2200XLI + 1 x SRT72BP 1 hrs 7 mins 45 mins 33 mins 26 mins
 SRT2200XLI + 2 x SRT72BP 1 hrs 59 min 1 hrs 21 mins 1 hrs 0 mins 48 mins
 SRT2200XLI + 3 x SRT72BP 2 hrs 53 mins 1 hrs 58 mins 1 hrs 29 mins 1 hrs 10 mins
 SRT2200XLI + 4 x SRT72BP 3 hrs 49 mins 2 hrs 36 mins 1 hrs 58 mins 1 hrs 33 mins
歡迎致電 2525-0650 或電郵至 enquiry@6dhk.com 查詢





APC Smart-UPS Online SRT 3000VA
Model 型號 : SRT3000XLI / SRT3000RMXLI

Specification 規格 : APC Smart-UPS On-Line, 2700W / 3000VA, Input 230V / Output 230V, Interface Port RJ45 Serial, SmartSlot, Extended runtime model, Rack-Height 2U

Topology 制式: Double Conversion Online
Dimension 體積: 432 x 85 x 635 mm (H x W x D)
Weight 重量: 31.1 KG
Warranty 保養: 3 years repair or replace (excluding battery) and 2 years for battery
Extended Run Option 附加電池組: SRT96BP / SRT96RMBP
Replacement Battery 更換電池: APCRBC152
19" Rail Kit 機架: SRTRK4

Table: Runtime vs Loading

  1300W 1600W 2000W 2500W
 SRT3000XLI 12 mins 9 mins 7 mins 5 mins
 SRT3000XLI + 1 x SRT96BP 48 mins 38 mins 29 mins 23 mins
 SRT3000XLI + 2 x SRT96BP 1 hrs 26 min 1 hrs 9 mins 54 mins 42 mins
 SRT3000XLI + 3 x SRT96BP 2 hrs 6 mins 1 hrs 40 mins 1 hrs 18 mins 1 hrs 1 mins
 SRT3000XLI + 4 x SRT96BP 2 hrs 47 mins 2 hrs 13 mins 1 hrs 44 mins 1 hrs 21 mins
歡迎致電 2525-0650 或電郵至 enquiry@6dhk.com 查詢




https://sites.google.com/a/6dhk.com/6dhk-web-site/apc-online-ups/SRT5KXLI_F.jpg     https://sites.google.com/a/6dhk.com/6dhk-web-site/apc-online-ups/SRT5KXLI_B.jpg?attredirects=0

https://sites.google.com/a/6dhk.com/6dhk-web-site/apc-online-ups/SRT5KRMXLI.jpg?attredirects=0

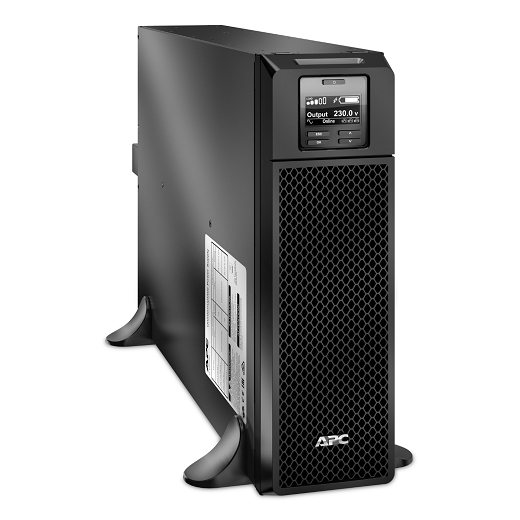

 APC Smart-UPS Online SRT 5000VA
Model 型號: SRT5KXLI / SRT5KRMXLI

Specification 規格: 4500 Watts /5000 VA, Input 230V /Output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model, Rack Height 3U  (Total 5U with SBP)

Topology 制式: Double Conversion Online
Dimension 體積: 130 x 432 x 719 mm (H x W x D)
Weight 重量: 54.43 KG
Warranty 保養: 3 years repair or replace (excluding battery) and 2 years for battery
Extended Run Option 附加電池組: SRT192BP / SRT192RMBP
Service Bypass Panels 旁路面板: SBP5000RMI2U
Replacement Battery 更換電池: APCRBC140
19" Rail Kit 機架: SRTRK2

Table: Runtime vs Loading

   1000W  2000W  3000W  4000W
 SRT5KXLI 31 mins 14 mins 8 mins 5 mins
 SRT5KXLI + 1 x SRT192BP 1 hrs 51 mins 53 mins 33 mins 24 mins
 SRT5KXLI + 2 x SRT192BP 3 hrs 16 mins 1 hrs 34 mins 1 hrs 0 mins 44 mins
 SRT5KXLI + 3 x SRT192BP 4 hrs 44 mins 2 hrs 17 mins 1 hrs 28 mins 1 hrs 4 mins
 SRT5KXLI + 4 x SRT192BP 6 hrs 15 mins 3 hrs 1 mins 1 hrs 57 mins 1 hrs 25 mins

歡迎致電 2525-0650 或電郵至 enquiry@6dhk.com 查詢




https://sites.google.com/a/6dhk.com/6dhk-web-site/apc-online-ups/SRT6KXLI_F.jpg    https://sites.google.com/a/6dhk.com/6dhk-web-site/apc-online-ups/SRT6KXLI_B.jpg

https://sites.google.com/a/6dhk.com/6dhk-web-site/apc-online-ups/SRT6KRMXLI.jpg

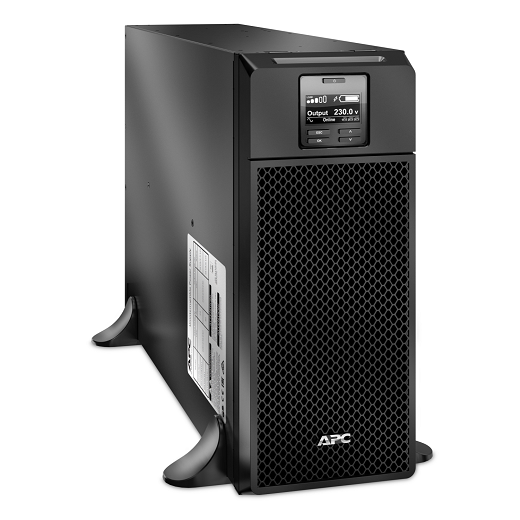

 APC Smart-UPS Online SRT 6000VA
Model 型號: SRT6KXLI / SRT6KRMXLI

Specification 規格: 6000 Watts /6000 VA,Input 230V /Output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model, Rack Height 4 U  (Total 6U with SBP)

Topology 制式: Double Conversion Online
Dimension 體積: 432 x 174 x 719 mm (H x W x D)
Weight 重量: 60.00 KG
Warranty 保養: 3 years repair or replace (excluding battery) and 2 years for battery
Extended Run Option 附加電池組: SRT192BP / SRT192RMBP
Service Bypass Panels 旁路面板: SBP6KRMI2U
Replacement Battery 更換電池: APCRBC140
19" Rail Kit 機架: SRTRK2

Table: Runtime vs Loading

   2000W  3000W  4000W  6000W
 SRT6KXLI 15 mins 9 mins 6 mins 2 mins
 SRT6KXLI + 1 x SRT192BP 57 mins 36 mins 26 mins 15 mins
 SRT6KXLI + 2 x SRT192BP 1 hrs 41 mins 1 hrs 5 mins 47 mins 29 mins
 SRT6KXLI + 3 x SRT192BP 2 hrs 28 mins 1 hrs 35 mins 1 hrs 9 mins 44 mins
 SRT6KXLI + 4 x SRT192BP 3 hrs 16 mins 2 hrs 6 mins 1 hrs 32 mins 59 mins

歡迎致電 2525-0650 或電郵至 enquiry@6dhk.com 查詢



https://sites.google.com/a/6dhk.com/6dhk-web-site/apc-online-ups/SRT8KXLI_F.jpg    https://sites.google.com/a/6dhk.com/6dhk-web-site/apc-online-ups/SRT8KXLI_B.jpg

https://sites.google.com/a/6dhk.com/6dhk-web-site/apc-online-ups/SRT8KRMXLI.jpg

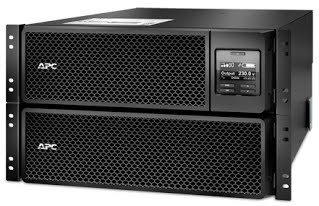

 APC Smart-UPS Online SRT 8000VA
Model 型號: SRT8KXLI / SRT8KRMXLI

Specification 規格: 8 kW / 8 kVA,Input 230V, 400V 3PH /Output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model, Rack Height 6 U (Total 10U with SBP)

Topology 制式: Double Conversion Online
Dimension 體積: 432 x 263 x 715 mm (H x W x D)
Weight 重量: 111.82 KG
Warranty 保養: 3 years repair or replace (excluding battery) and 2 years for battery
Extended Run Option 附加電池組: SRT192BP2 / SRT192RMBP2
Service Bypass Panels 旁路面板: SBP10KRMI4U
Replacement Battery 更換電池: APCRBC140
19" Rail Kit 機架: SRTRK2

Table: Runtime vs Loading

   2000W  4000W  6000W  8000W
 SRT8KXLI 34 mins 15 mins 8 mins 5 mins
 SRT8KXLI + 1 x SRT192BP2 1 hrs 15 mins 35 mins 21 mins 15 mins
 SRT8KXLI + 2 x SRT192BP2 1 hrs 59 mins 55 mins 35 mins 25 mins
 SRT8KXLI + 3 x SRT192BP2 2 hrs 44 mins 1 hrs 17 mins 49 mins 35 mins
 SRT8KXLI + 4 x SRT192BP2 3 hrs 30 mins 1 hrs 39 mins 1 hrs 2 mins 45 mins

歡迎致電 2525-0650 或電郵至 enquiry@6dhk.com 查詢



https://sites.google.com/a/6dhk.com/6dhk-web-site/apc-online-ups/SRT10KXLI_F.jpg    https://sites.google.com/a/6dhk.com/6dhk-web-site/apc-online-ups/SRT10KXLI_B.jpg

https://sites.google.com/a/6dhk.com/6dhk-web-site/apc-online-ups/SRT10KRMXLI.jpg

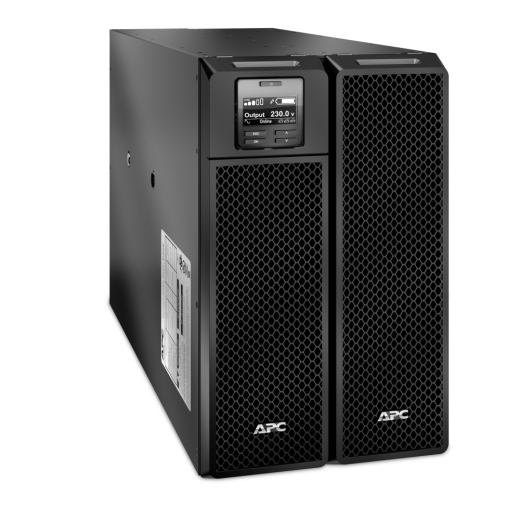

 APC Smart-UPS Online SRT 10000VA
Model 型號: SRT10KXLI / SRT10KRMXLI

Specification 規格: 10 kW /10 kVA,Input 230V, 400V 3PH /Output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model, Rack Height 6 U (Total 10U with SBP)

Topology 制式: Double Conversion Online
Dimension 體積: 432 x 263 x 715 mm (H x W x D)
Weight 重量: 111.82 KG
Warranty 保養: 3 years repair or replace (excluding battery) and 2 years for battery
Extended Run Option 附加電池組: SRT192BP2 / SRT192RMBP2
Service Bypass Panels 旁路面板: SBP10KRMI4U
Replacement Battery 更換電池: APCRBC140
19" Rail Kit 機架: SRTRK2

Table: Runtime vs Loading

  4000W 6000W 8000W 10000W
 SRT10KXLI 15 mins 9 mins 6 mins 4 mins
 SRT10KXLI + 1 x SRT192BP2 36 mins 22 mins 16 mins 12 mins
 SRT10KXLI + 2 x SRT192BP2 58 mins 37 mins 26 mins 20 mins
 SRT10KXLI + 3 x SRT192BP2 1 hrs 21 mins 51 mins 37 mins 28 mins
 SRT10KXLI + 4 x SRT192BP2 1 hrs 44 mins 1 hrs 44 mins 48 mins 37 mins

歡迎致電 2525-0650 或電郵至 enquiry@6dhk.com 查詢







全新推出 SRT 系列 APC Online UPS


Best-in-class Power Density
系列中的 Power Factor 最高,SRT 的 5K 最高 Laoding 為 4500 W,已經高過SURTD 系列的 6K機 (Loading 為 4200W),6K - 10K 機 PF 更加可以去到1,Loading 和 VA 相等。

High-Efficiency “Green Mode”
嶄新設計,減少 UPS自身的消耗電量,達到 98%的有較功率,更獲得 Energy Star 認證。

Graphical LCD Display With Multicolor Backlight
附有圖像化的 LCD 顯示,清楚知道實時資料

Intelligent Battery Management
全新的電池管理,系統會使用先進的算法自動計算和推薦更換電池日期。

Built-in Energy Meter
內置用電量計算功能,讓你清楚了解用電狀況。

Operate Without Battery
當電池損耗那一刻,立即轉用市電,不會對儀器有所影響。

Three-year Warranty on Electronics
三年 UPS 機身零件保養,電池為兩年保養。

Embedded Network Management Card With Environmental Monitoring
內置網絡管理功能可經網絡關閉伺服器,以往需要講買 AP9630 或 AP9631 才有的功能,現在免費得到。另外仍然保留 SmartSlot™,需要時也可再加其他卡如Dry Contact IO 卡。(只限5k-10kVA UPS)

Switched Outlet Group(s)
可以開關某組電源,
- 可遠端重啟HANG了機的裝置。
- 可設定當UPS各種參數而關閉某組電源,例如當電池只餘下50%時關閉不是十分重要的儀器如備份裝置。
- 可設定時間制,自動關閉某組儀器。

Emergency Power Off (EPO)
緊急情況(例如火警發生)下可以遠端關閉整台UPS。



APC SURT Series Online UPS (1kVA):


https://sites.google.com/a/6dhk.com/6dhk-web-site/apc-online-ups/SURT1000XLI_B.jpg?attredirects=0
APC Smart-UPS Online RT 1000VA 230V
Model 型號 : SURT1000XLI / SURT1000RMXLI

Specification 規格 : APC Smart-UPS On-Line,700 Watts / 1000 VA,Input 230V /Output 230V, Interface Port DB-9 RS-232, SmartSlot, Extended runtime model, Rack Height 2 U

Topology 制式: Double Conversion Online
Dimension 體積: 432 x 85 x 483 mm (H x W x D)
Weight 重量: 23.00 KG
Warranty 保養: 2 years repair or replace
Extended Run Option 附加電池組: SURT48XLBP / SURT48RMXLBP
Replacement Battery 更換電池: RBC31
19" Rail Kit 機架: SURTRK

Table: Runtime vs Loading

  200W 500W 700W
 SURT1000XLI 57 mins 21 mins 14 mins
 SURT1000XLI + 1 x SURT48XLBP 3 hrs 17 mins 1 hrs 20 mins 56 mins
 SURT1000XLI + 2 x SURT48XLBP 5 hrs 48 mins 2 hrs 24 mins 1 hrs 41 mins
 SURT1000XLI + 3 x SURT48XLBP 8 hrs 24 mins 3 hrs 29 mins 2 hrs 28 mins
 SURT1000XLI + 4 x SURT48XLBP 11 hrs 4 mins 4 hrs 37 mins 3 hrs 16 mins

歡迎致電 2525-0650 或電郵至 enquiry@6dhk.com 查詢
